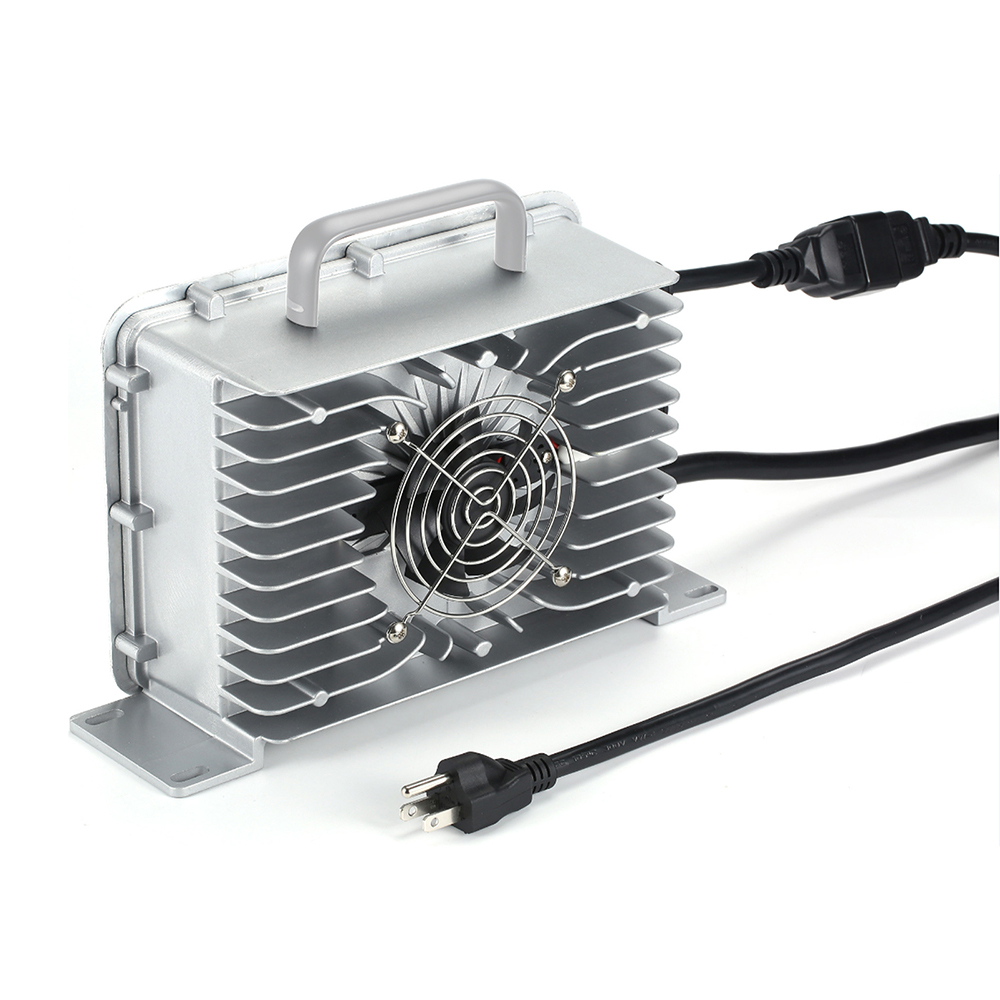

PowerUrus 29.2V-30A P085MB LiFePO4 Battery Charger
USERS MANUAL
Suitable for Powerurus LiFePO4 Batteries only
INSTRUCTION
Thank you for purchasing our product. Please read the entire instruction strictly to use you product. RP2930-LFP Charger is an economic, high quality 100-240V AC balance charger, designed for charging our LFP batteries.
Charging program consists of 3 steps: constant current, constant voltage and float charging.
The chargers provide protections against overload, over-voltage, over-heating, short circuit and reverse polarity connections.
SPECIFICATIONS
DC Output
|
Maximum DC output voltage
|
29.2V
|
Maximum DC output current
|
30 A
|
Maximum DC output power
|
900 W
|
Nominal DC output current
|
30A @ 110 VAC, 30A @ 220 VAC 22A @ 110 VAC
|
Battery type
|
Lithium
|
AC Input
|
AC input voltage range
|
85-270 VAC
|
Nominal AC input voltage
|
100-240 VAC
|
Nominal AC input frequency
|
50 / 60 Hz
|
Maximum AC input current
|
16A
|
Nominal AC input current
|
10A
|
Power factor
|
>0.9
|
Mechanical
|
Dimensions
|
28.2 x 12.4 x 7.2 cm (11.1 x 6.57 x 4.5”)
|
Weight
|
9.0 lbs (4.1 kg)
|
Cooling
|
Active cooling with fan
|
Environmental
|
Enclosure
|
IP66
|
Humidity
|
5% - 95%
|
Operating temperature
|
-40℃ to +65℃ (-40oF to 149oF),Derated at >40℃ (104℉)
|
Storage temperature
|
-40℃ to +85℃ (-40°F to 185°F)
|
EXPLANATION OF LED STATUS
LED
|
Charger Status
|
1. LED solid green.
|
1. The charger is ready to charge, or Charging is complete.
|
2. LED Green blinking.
|
2. The charger is charging.
|
3. Red light blinking quickly.
|
3. Input power failure.
|
4. LED Red and green blinking alternately.
|
4. The output is short-circuited or the positive and negative poles of the battery are reversed.
|
5. Red light blinks 2 times, interval 1 second, blinks 2 times again.
|
5. Charger temperature overheating alarm.
|
6. Red light blinks 3 times, interval 1 second, and then blinks 3 times.
|
6. Output overcurrent alarm.
|
7. Red light blinks 4 times, interval 1 second, then blinks 4 times.
|
7. Output over-voltage alarm.
|
If there is a problem with the charger, the fan will stop rotating and the LED indicator will blink red light to give an error warning. Please disconnect the charger from the wall socket.
WARNING AND SAFETY NOTES
RP2930-LFP Charger is suitable for charging PowerUrus LFP batteries, charging other batteries may cause fire or explosion.
The allowable AC input voltage is 100-240V AC. Never connect it to any other voltage.
Never leave the charger unattended when it is connected to its power supply.
Never place the charger and batteries connected to it on any form of flammable surface.
Neveroperate the charger in the vicinity of inflammable material or gas.
Ensure that there is an unrestricted airflow to and from the charger's cooling slots.
Never place thecharger on a carpet or similar surface.
Take great care to maintain correct battery polarity, and avoid shot-circuit.
Read the battery manufacturer's instructions and adhere to them strictly.
