PowerUrus 12V 200Ah Self Heating LiFePO4 Lithium Battery APP and Low Temperature Protection

PowerUrus 12V 200Ah Self Heating LiFePO4 Lithium Battery APP and Low Temperature Protection

Item	Parameter
Version	Preheat Version
Model Number	S12100H	S12200H
Nominal Capacity	100Ah @ 0.5C	100Ah @ 0.5C
Actual Capacity	≧100Ah @ 1C	≧200Ah @ 1C
Nominal Voltage	12.8V
Charge Voltage	14.4V~14.6V
Max Charge Voltage	14.6V
Discharge Protection Voltage	10.8V
Continuous Charge Current	50A	50A
Max Charge Current	100A	200A
Continuous Discharge Current	100A	200A
Discharge Protection Current	200A @ 20sec 280A @ 5sec	250A @ 30sec 400A @ 1sec
Bluetooth Version	Bluetooth 5.0
Cycle Life	>3500 Cycles @25°C, 0.5C Charge, 1C Discharge DOD 70% (SOC 30~100%)
Charge Below 32°F/0°C	Supported
Battery Cells Preheat Temperature	Preheat Start: 38°F/3°C Preheat Stop: 61°F/16°C
Operating Temperature	Charge:≦113°F/45°C /45-85% RH Discharge: -4~131°F/-20~55°C /45-85% RH
Storage Temperature	1- Month: -4~113°F/-20~55°C /45-85% RH 1-Year: 32~95°F/0~35°C /45-85% RH
Product Size (MM/IN)	330x173×215 MM 13×6.8×8.46 IN	520X240X220 MM 18.9X6.9X7.3 IN
Product Weight (KG / LB)	13KG /28.2LB	27.5KC / 60.5LB

Intelligent Self-Heating Function

PowerUrus LifePO4 Self-Heating Battery meets the upgraded self-heating function based on the previous battery. When the charging temperature falls below 37.4°F/3°C, the self-heating function will be automatically activated. The heating will stop when the temperature reaches 60.8°F/16°C, and then the battery will be normally charged. No fear of winter coming!

Battery Charge & Discharge Protection

PowerUrus Batteries Built-in smart BMS prevents charging over 131 °F (55 °C), less than 32 °F (0 °C) and also prevents discharging over 140 °F (60 °C), less than -4 °F (-20 °C).

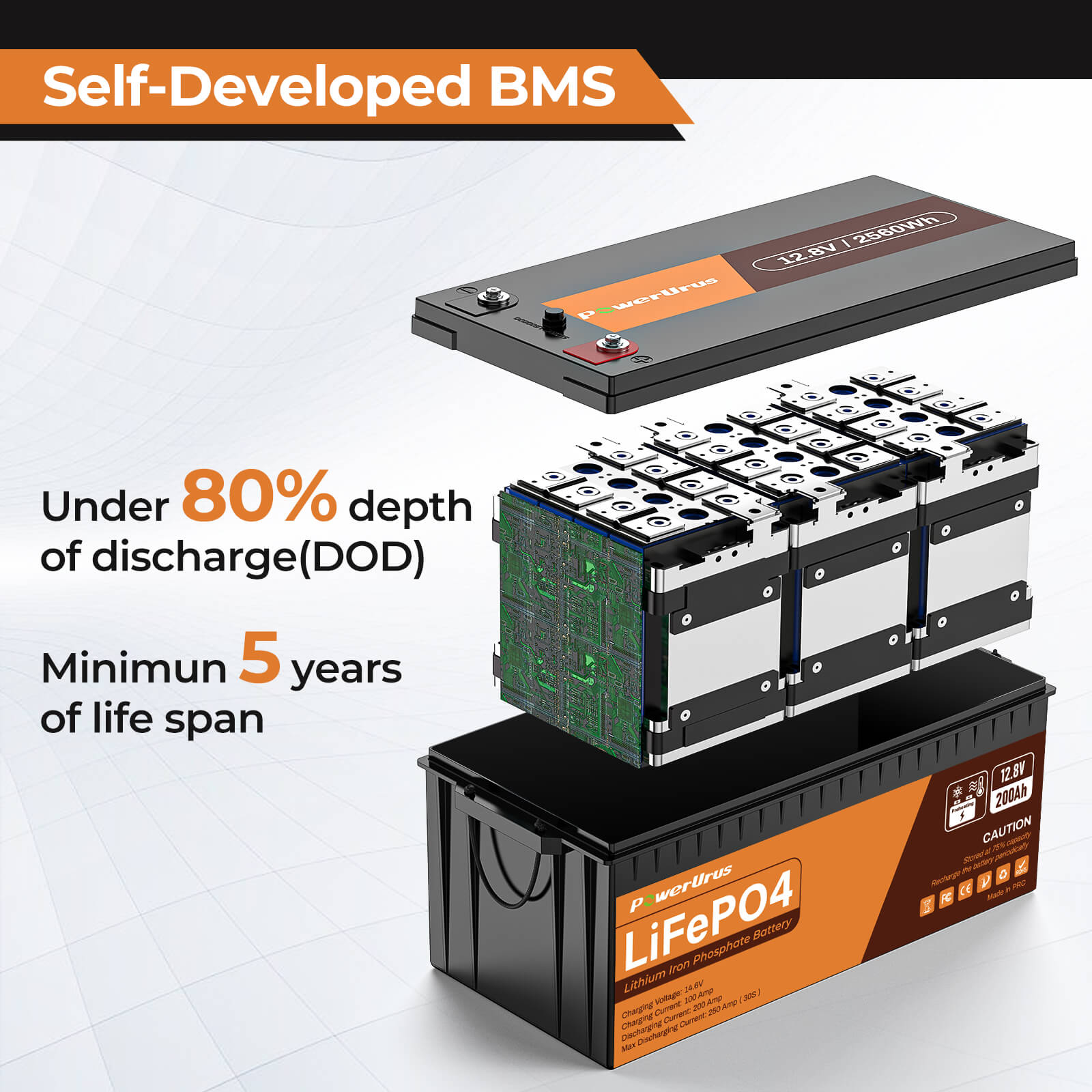

Built-in BMS & Big-brand new A+ cell

With our proprietary Battery Management System (BMS), the PowerUrus LiFePO4 battery has built-in BMS to protect it from overcharge, over-discharge, over-current, and short circuit with excellent self-discharge rate. The upgraded auto-balancing technique improves the battery life, backing up that all batteries deliver life cycles 3500+ (70% DoD), minimum 5-year life span.

5-Year Warranty & Timely Service

PowerUrus provides a 5-year warranty for our batteries. We're struggling to provide the safest batteries and the most professional service to every customer. If you have any questions, please feel free to contact us.

Excellent Bluetooth function

Compared with the traditional battery monitor, the PowerUrus battery has added Bluetooth function and can obtain various data from the lithium iron phosphate battery. Customers can connect to the battery through the RoyPow Fish APP, and read the battery voltage, power, and other important information at any time.

High-quality Batteries Are Assured For Customers

PowerUru's original factory deep cycle lithium-ion battery has higher energy density, more stable performance and greater power. LiFepo4 battery will not burn when overcharged, over-discharged, overcurrent or short circuit, and can withstand high temperatures without decomposition. Our LiFepo4 batteries a green battery, it does not contain any heavy metals or rare metals and is more environmentally friendly.

Capacity Expansion For Every Need

PowerUrus LiFePO4 battery with auto-balancing function can be connected in parallel and in series for larger capacity and voltage. Max 4 batteries connection in series or 4 batteries in parallels. so you can have more flexibility in getting a DIY battery system to cover all your needs.

Attention Please:

This battery is NOT suitable for use as a starter battery for cars.

PowerUrus knows well that fast delivery is a key factor for clients to compete in the market. We have always attached great importance to quick delivery as much as we do in the quality control of our lithium battery.

Shipping time
In general, the order will be shipped within 24 hours after the payment is successful. If there is another condition, we will notify the customer by email.
USA Shipment from the CA or GA warehouse and EU shipment from the German warehouse. The order won't be shipped on Saturday and Sunday, and orders placed on Saturday and Sunday will be shipped on next Monday.



Shipping fee

FREE shipping on all orders. All our shipping for products will be a door-to-door service with local UPS or FedEx delivery company.

Destinations

If you are concerned with shipping, please also check the free shipping area above picture. For some certain places, we might not deliver or need extra shipping. For some certain places, we might not deliver or need extra shipping.

PowerUrus offers free shipping within the continental U.S. and EU. For USA shipment we do not ship to Hawaii, Alaska, Puerto Rico, Overseas Islands, U.S. Overseas Territories, Military Addresses, and P.O. Boxes. For EU shipments we do not ship to Overseas Islands, Military Addresses, and P.O. Boxes.

Orders with multiple items may be shipped in separate packages to speed up delivery.



Tips for shipping

• PowerUrus is doing its best to make the promised time, please understand our warehouse is working only on business days, so please remember to enjoy the day even if there's a difference in the ETA. By the way, we will inform you proactively if something is wrong.

• You may please fill in the phone number. For a multi-hundred USD Battery, deserve a phone number for some urgent calls?

• Feel free to reach out to us at hello@powerurus.com





Question: Why can't my cellphone find the battery's Bluetooth?

Answer: The battery Bluetooth version is Bluetooth 4.0, please check the compatibility with your cellphone. If possible, please change to another cellphone for a try.

Question: Why can't my phone be connected to the battery's Bluetooth?

Answer: Firstly, we recommend the connection distance between the battery and the cellphone should be within 5 meters upon the initial connection test. If the Bluetooth cannot be found or connected, we suggest uninstalling the current "RoyPow Fish" APP and downloading it again from the APP store. Next, reinstall it and release all the required permissions for the "RoyPow Fish" APP. Lastly, make sure to turn on the cellphone's Bluetooth, and start the APP to reconnect it.



Question: How can I get the device binding code set up?

Answer: The device binding code is only used for maintenance by the manufacturer, and the user can ignore this device binding code, if it appears when connecting the battery, please click "Skip" it to the next.

Question: Why can't I turn on the Wi-Fi in the APP?

Answer: If the connected PowerUrus battery is not a Wi-Fi version, the Wi-Fi in the APP will be disabled.

Question: Why is the battery's voltage too low at the first use?

Answer: Due to the logistics restriction, the battery only has 25~30% SOC before leaving the factory, we suggest recharging the battery completely before use, and the battery's voltage will become normal.

Question: Why does the battery SOC in the APP seem inaccurate?

Answer: If you just received the new battery or the battery hasn't been recharged for a long time, the battery SOC in the APP might be inaccurate, the SOC will be accurate after a circle of full charge and discharge.

Question: How many PowerUrus batteries can be connected in series or parallel?

Answer: The Maximum PowerUrus batteries can be up to 4 in series (48V Battery System) or 4 in parallel (12V Battery System). Please contact us first if you require PowerUrus batteries to be connected both in series and parallel.

Question: What gauge of cable should I need for my battery system?

Answer: As the cable size is affected by the cable length, cable current, the inverter power rating, and something else, so you have to check the total power consumption of the total electricity system and the operating voltage of the battery system (e.g. 12V / 24V / 36V / 48V battery system) first, and then you can roughly calculate the current in the battery system. Lastly, refer to the "Cable Sizing" chart in the "Welcome Guide" to select the corresponding cable gauge. You also can consult us for more advice on cable sizing.

Question: What's the PowerUrus batteries difference between the Standard Version and the Preheat Version?

Answer: The Standard Version has low-temperature charge protection and doesn't allow to be charged below 0℃, while the Preheat Version has a battery preheating function and allows to be charged below 0℃ without damaging the battery. They apply to different use scenarios.

Question: Can standard batteries be connected in series and parallel with Preheat batteries?

Answer: Not recommended. In case of severe cold weather below 0°C, the Preheat model can be charged while the standard model cannot be charged. If the two batteries are connected in series or parallel, the battery system will work abnormally.

Question: How does the Preheat battery work?

Answer: If the battery cell temperature is already below 0°C when charging the battery, after connecting to the charger, the charger will prioritize heating the battery to 16°C before charging the battery. If the battery cell temperature drops to 3°C again during the charging process, the charger will stop charging the battery and heat up the battery cell again until the cell temperature reaches 16°C, then the charger will charge the battery cell again. The cycle is repeated!
